7390-2000100-BLYL

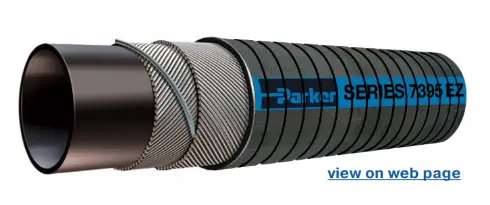

Parker Hose Series 7395 Hose ID 2.00 Inch, 50.8mm  W.P 103 Bar

Technical Specification

Hose  I.D : 2.00 lnch, 50.8 mm

Inner tube : Black EPDM, peroxide cured

Reinforcement: ​Multiple textile braids or plies with wire helix

Outer Cover : Black synthetic rubber; greek corrugated​

Vacuum Rating: 29 inch Hg, 98 kPa

Hose O.D : 2.50 inch,  65.0 mm

Working Pressure : 150 Psi, 103 Bar

Temp Range : -40°F to +212°F (-40°C to +100°C)

Minimum bend radius : 4.6 inch, 116.8 mm

Approx weight : 0.96 Ibs/ft, 1.43 kg/m

colour: Mylar Blue (-BLYL) or Red (-RLYL) for color coding
