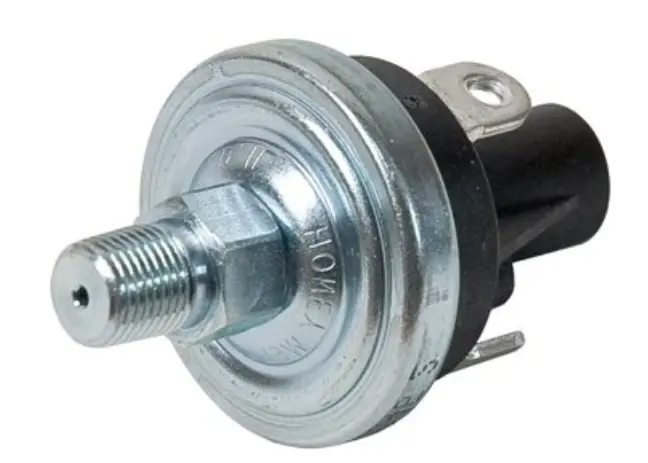

76072-15psi
DESCRIPTION:
These switches sense a change in the pressure, opening or closing an electrical circuit when the designated set point is reached.
TECHNICAL DESCRIPTION:
| Product Type | Pressure Switch |
| Terminal | #8-32 screw |
| Contact Setting | 14 psi to 24 psi, ±3 psi |
| Factory Setting | 15 psi |
| Circuitry | NO/NC, adjustable |
| Circuit | Dual circuit, one circuit adjustable |
| Termination | Screw |
| Contact(s) | Silver alloy, gold plated |
| Proof Pressure | 500 psi |
| Burst Pressure | 750 psi |
| Resistive Ratings | 15 A, 6 Vdc; 8 A, 12 Vdc; 4 A, 24 Vdc |
| Inductive Ratings | 1 A, 120 Vac; 0.5 A, 240 Vac |
| Diaphragm | Polymide film |
| Temperature | -40 °F to 250 °F |
| Base | Plated steel |
| Cover Type | Glass reinforced polyester |
| Options | Brass, plastic, or stainless steel base; various base connector thread sizes; wire leads (potted and sealed) |
| Connector(s) | 1/8-27 NPT thread |
