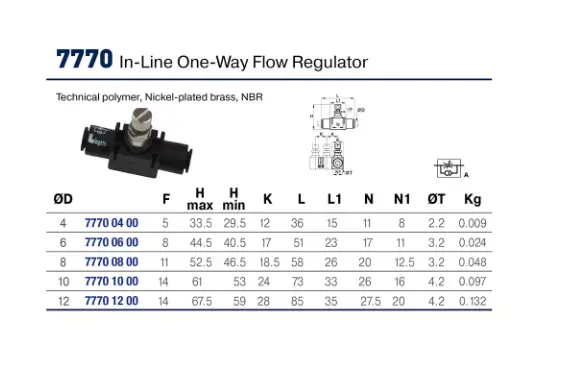

7770 10 00
DESCRIPTION:
Parker Legris flow control regulators, available with polymer, nickel-plated brass, stainless steel, or aluminium bodies and featuring external or recessed adjustment screws, offer precise adjustment, consistent control, and compactness.
TECHNICAL DESCRIPTION:
| Connection 1 Size: | 10 mm |
| Product Style: | In-Line Regulators with External Adjustment |
| Flow Direction: | Uni-Directionnal |
| Product Style: | In-Line Regulators with External Adjustment |
| Connection 2 Size: | 10 mm |
| Brand: | Parker, Legris |
| Division: | Low Pressure Connectors Europe Division |
| Industry: | Industrial Manufacturing Equipment, Industrial Processing |
| Application: | Robotics, Textile, Automotive Process, Packaging |
| Technology: | Pneumatics |
| Product Type: | Function Fittings and Flow Control |
| Maximum Operating Pressure: | 10 bar, 145 psi |
| Minimum Operating Pressure: | 1 bar, 14.5 psi |
| Shape: | In-Line |
| Configuration: | Tube to Tube |
| Connection 2 Type: | Tube |
| Hex Size: | 14 mm |
| Maximum Operating Temperature: | 70 °C, 158 °F |
| Minimum Operating Temperature: | 0 °C, 32 °F |
| Flow Direction: | Uni-Directionnal |
| Body Material: | Technical Polymer |
| Seal Material: | NBR |
| Weight: | 0.1 kg |
| Height: | 61 mm |
| Quantity per Box: | 2 |
| Nut Material: | Nickel-Plated Brass |
| For Fluid Type: | Compressed air, Other fluids: contact us |
| Connection 1 Type: | Tube |
| Connection 1 Size: | 10 mm (O.D.) |
| Connection 2 Size: | 10 mm (O.D.) |
| Body Material: | Technical Polymer |
