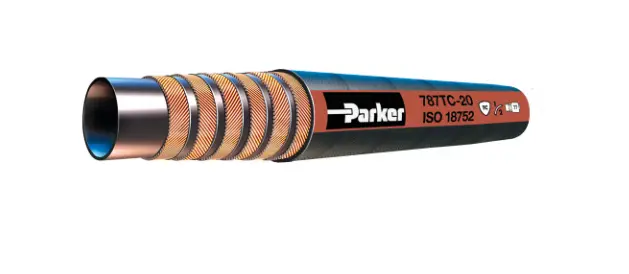

787TC-20
DESCRIPTION:
Part of the GlobalCore family of robust hydraulic hoses. Parker’s 787 hose delivers 5000 PSI constant working pressure in a lightweight and easy to bend product.
TECHNICAL DESCRIPTION:
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Hose I.D. (size): | -20 |
| Media: | Lubricants, Petroleum Hydraulic Fluids |
| Specifications Met: | ISO 18752, Type DC, MSHA TC, ST CP covers only |
| Compatible Fitting: | 77 Series |
| Inside Diameter: | 1-1/4 inch, 31.5 mm |
| Application: | Lubricating Oils, Petroleum Base Hydraulic Fluids |
| Hose Reinforcement Material: | 4 or 6 Spirals of Steel Wire Compact |
| Weight: | 2.89 kg/m, 1.95 lb/ft |
| Outside Diameter: | 1.770 inch, 44.9 mm |
| Maximum Operating Pressure: | 5000 psi, 35 MPa, 350 bar |
| Minimum Bend Radius: | 8-1/4 inch, 210 mm |
| Maximum Operating Temperature: | 257 °F, 125 °C |
| Hose Inner Tube Material: | Proprietary Synthetic Rubber Compound |
| Cover Material: | Synthetic Rubber |
| Size: | -20 |
| Hose Cover Type: | ToughCover |
