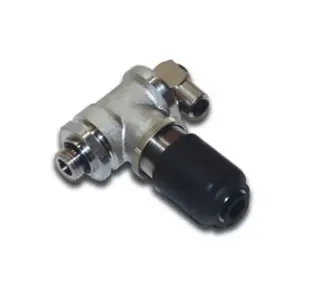

7883 08 17
DESCRIPTION:
Blocking fittings, mounted in pairs on a cylinder, lock the piston by simultaneously cutting off the supply and exhaust when the pilot signal is removed.
TECHNICAL DESCRIPTION:
| Connection 2 Thread Size: | G3/8 |
| Connection 1 Thread Size: | G3/8 |
| Pilot Port Type: | Push to connect : OD 4 mm |
| Maximum Operating Temperature: | 70 °C |
| Connection 2 Type: | Female BSPP |
| Connection 2 Tube Outside Diameter: | 8 mm |
| Body Material: | NICKEL PLATED BRASS |
| Gripping Ring Material: | STAINLESS STEEL |
| O-Ring Material: | NBR |
| Thread Sealant Material: | na |
| Maximum Operating Pressure: | 10 bar |
| Minimum Operating Temperature: | -20 °C |
| Quantity per Box: | 1 |
| Weight: | 0.254 kg |
| Industry Application: | Robotics, Machine Tools, Textile, Packaging, Pneumatics, Automotive Process |
| Media: | Compressed air |
| Specifications Met: | ROHS, PED, REACH |
| Product Type: | Blocking Fittings |
| Connection 1 Type: | Male BSPP |
| Shape: | Blocking flow regulator fitting |
