8.F3673.2363.G412
DESCRIPTION:

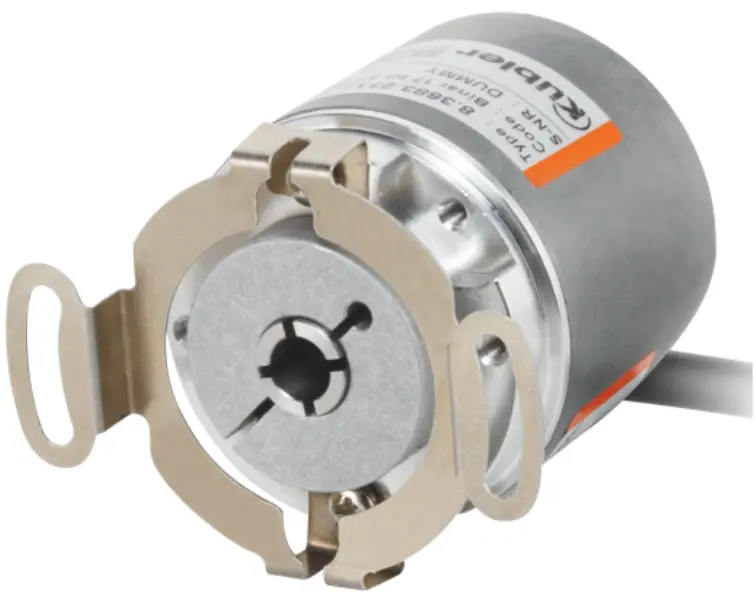

G412 Kubler Encoders, Sendix F3673 Series, Absolute; Stator Coupling; 8mm bore; S
TECHNICAL DESCRIPTION:
|
Manufacturer Part Number |
8.F3673.2363.G412 |
|
Product Series |
Sendix F3673 |
|
Description |
Absolute; Stator Coupling; 8mm bore; SSI/5V; 5m Cable; 14-bit |
|
Single Turn Resolution |
14 |
|
Input Power |
5 VDC |
|
Protocol |
SSI Gray |
|
Shaft/Bore Size |
8 mm |
|
Shaft Seal |
No |
|
Mounting |
Hollow Shaft |
|
Connector |
5 m Tangential Cable |
|
Explosion Proof |
No |
|
Operating Temperature |
-40-90 °C |
|
Protection Rating |
IP65 |
|
Sensing |
Optical |
|
Net Weight |
0 lbs |
|
Gross Weight |
0 lbs |
