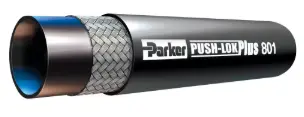

801-12-BLK-RL
DESCRIPTION:
Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry
TECHNICAL DESCRIPTION:
| Minimum Operating Temperature: | -40 °C (Oil), -40 °F (Oil) |
| Hose I.D. (size): | -12 |
| Color: | Black |
| Media: | Air (Compressed Air with traces of Oil), Coolants, Lubricants, Petroleum Hydraulic Fluids |
| Specifications Met: | n/a |
| Compatible Fitting: | HY Series, 82 Series |
| Inside Diameter: | 3/4 inch, 19 mm |
| Application: | Lubricating Oils, Petroleum Base Hydraulic Fluids, Antifreeze Solutions |
| Hose Reinforcement Material: | 1 Braid of Fiber |
| Nominal Hose Inside Diameter: | 19 mm |
| Outside Diameter: | 1.030 inch, 26.2 mm |
| Size: | -12 |
| Maximum Operating Temperature: | 158 °F (Air), 70 °C (Air), 185 °F (Water), 85 °C (Water), 257 °F (Oil), 125 °C (Oil) |
| Maximum Operating Pressure: | 300 psi, 2.1 MPa |
| Cover Material: | Synthetic Rubber, MSHA Approved |
| Hose Inner Tube Material: | Synthetic Rubber |
| Minimum Bend Radius: | 7 inch, 180 mm |
| Weight: | 0.24 lb/ft, 0.36 kg/m |
| Design Factor: | 4:1 |
| Vacuum Pressure Rating: | 15 inch-Hg, 381 mm-Hg |
