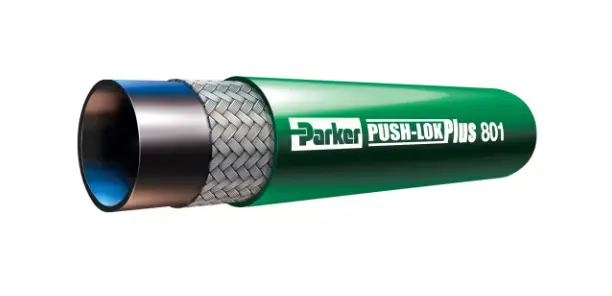

801-8-GRN-BX
DESCRIPTION:
Parker's 801 hose has a pressure range of 200-350 PSI, and is amongst the Push-Lok Plus multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.
TECHNICAL DESCRIPTION:
| Minimum Operating Temperature: | -40 °C (Oil), -40 °F (Oil) |
| Color: | Green |
| Media: | Air (Compressed Air with traces of Oil), Coolants, Lubricants, Petroleum Hydraulic Fluids |
| Specifications Met: | n/a |
| Compatible Fitting: | HY Series, 82 Series |
| Inside Diameter: | 1/2 inch, 12.5 mm |
| Application: | Lubricating Oils, Petroleum Base Hydraulic Fluids, Antifreeze Solutions |
| Hose Reinforcement Material: | 1 Braid of Fiber |
| Nominal Hose Inside Diameter: | 12 mm |
| Outside Diameter: | 0.780 inch, 19.8 mm |
| Size: | -8 |
| Maximum Operating Temperature: | 158 °F (Air), 70 °C (Air), 185 °F (Water), 85 °C (Water), 257 °F (Oil), 125 °C (Oil) |
| Hose I.D. (size): | -8 |
| Maximum Operating Pressure: | 300 psi, 2.1 MPa |
| Cover Material: | Synthetic Rubber, MSHA Approved |
| Hose Inner Tube Material: | Synthetic Rubber |
| Minimum Bend Radius: | 5 inch, 125 mm |
| Weight: | 0.18 lb/ft, 0.27 kg/m |
| Design Factor: | 4:1 |
| Vacuum Pressure Rating: | 28 inch-Hg, 711 mm-Hg |
