801-8-RED-RL
DESCRIPTION:

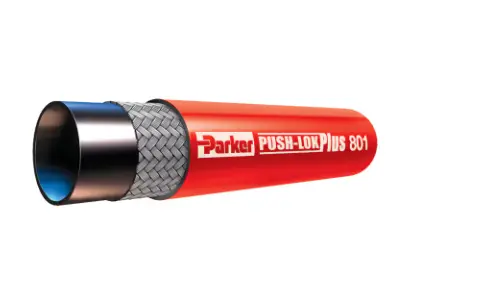

Parker's Push-Lok 801PLUS is a very flexible all-rounder with Nitrile (NBR) inner tube and a working pressure of up to 2.4 MPa, available in six different colors and compatible with Push-Lok fittings in series 82 in steel, stainless steel and brass.
TECHNICAL DESCRIPTION:
| Hose Inside Diameter: | 12.7 mm - 1/2 inch |
| Cover Color: | Red |
| Maximum Operating Pressure: | 21 bar |
| Industry: | General Industrial, Marine, Transportation |
| Hose Inner Tube Material: | Nitrile Butadiene Rubber (NBR) |
| Brand: | Parker |
| Maximum Operating Pressure: | 21 bar, 2.1 MPa, 300 psi |
| Product Type: | Push-Lok and Push-on Hoses, Push-Lok and Push-on Hoses (Push-Lok Plus) |
| Technology: | Fluid & Gas Handling |
| Design Factor: | 4:1 |
| Vacuum Pressure Rating: | 0.95 bar, 28.05 inch-Hg, 712.56 mm-Hg |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 4.921 inch, 125 mm |
| Weight: | 0.18 lb/ft, 0.27 kg/m |
| Size: | -8 |
| Cover Color: | Different Colours |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | 82 Series |
| Inside Diameter: | 1/2 inch, 12.7 mm |
| Maximum Operating Temperature: | 100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F) |
| Application: | Low Pressure Hydraulics, Paper & Pulp for water/air applications |
| Hose Reinforcement Material: | Braid of High Tensile Fiber |
| Outside Diameter: | 0.764 inch, 19.4 mm |
| Media: | Air (General Industrial Air), Coolants (Water-Glycol), Lubricants (Oils), Petroleum Hydraulic Fluids, Water |
| Minimum Operating Temperature: | -40 °C |
| Hose I.D. (size): | -8 |
| Cover Material: | Synthetic Rubber High Performance. |
