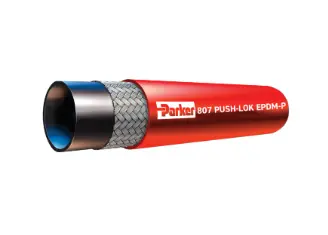

807-16-RED-RL
DESCRIPTION:
Parker's 807 hose has a working pressure of 150 PSI (100 PSI in size 16) and is the newest addition to our Push-Lok hose family. Featuring a peroxide cured EPDM tube, it is ideal for use in thermal management systems.
TECHNICAL DESCRIPTION :
| Application: | Media Transfer |
| Media: | air (indlucing dry air), water (including PCW), coolant solutions |
| Cover Material: | Red synthetic rubber smooth finish |
| Hose Inner Tube Material: | Black EPDM peroxide cured |
| Hose Reinforcement Material: | One fiber braid |
| Hose Outside Diameter: | 1.28 inch, 32.6 mm |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Minimum Operating Temperature: | -40 °F, 212 °C |
| Maximum Operating Pressure: | 100 psi, 6.89 bar, 0.69 MPa |
| Compatible Fitting: | 82 series |
| Specifications Met: | UL94 V-0 Flame resistance rating |
| Weight: | .306 lb-ft, .042 kg/m |
| Minimum Bend Radius: | 6.5 inch, 165.1 mm |
