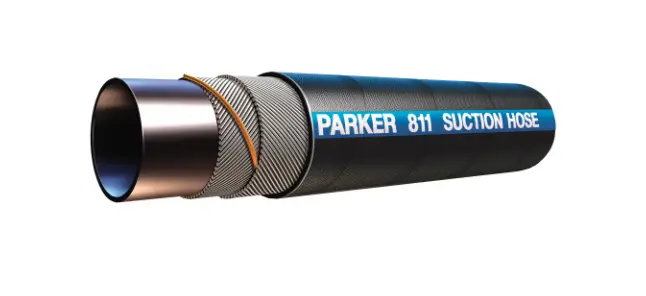

811-32
DESCRIPTION:
Parker’s 811 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.
Technical Specifications
| Weight: | 1.87 kg/m, 1.26 lb/ft |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Hose I.D. (size): | -32 |
| Media: | Lubricants, Petroleum Hydraulic Fluids |
| Specifications Met: | SAE 100R4, SAE J1943, USCG HF |
| Compatible Fitting: | 81 Series, 88 Series, 43 Series |
| Inside Diameter: | 2 inch, 50.8 mm |
| Application: | Lubricating Oils, Petroleum Base Hydraulic Fluids |
| Hose Reinforcement Material: | Multiple Layers of Spiral Fiber with Wire Helix |
| Nominal Hose Inside Diameter: | 50 mm |
| Outside Diameter: | 2.500 inch, 63.6 mm |
| Vacuum Pressure Rating: | 84 kPa, 25 inch-Hg |
| Maximum Operating Pressure: | 100 psi (w/ 81/88DB), 0.7 MPa (w/ 81/88DB), 7 bar (w/ 81/88DB), 50 psi (w/ 88HC), 0.3 MPa (w/ 88HC), 3 bar (w/ 88HC) |
| Hose Inner Tube Material: | Synthetic Rubber |
| Cover Material: | Synthetic Rubber |
| Minimum Bend Radius: | 6 inch, 152 mm |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Hose Cover Type: | Standard Cover |
