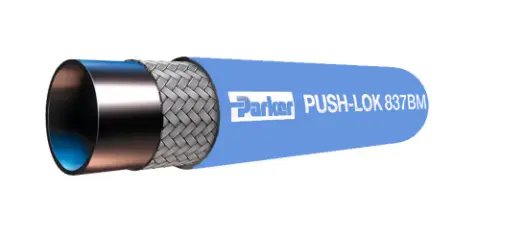

837BM-10-BLU-RL
DESCRIPTION:
Parker's Low Pressure Push-Lok Hose 837BM has been developed with a high level of hose flexibility and for a working pressure up to 1.6 MPa. The hose range is compatible with Push-Lok fittings in steel and stainless steel in series 82.
TECHNICAL DESCRIPTION:
| Cover Color: | Blue |
| Hose Inside Diameter: | 15.9 mm - 5/8 inch |
| Maximum Operating Pressure: | 16 bar |
| Hose Inner Tube Material: | Synthetic Rubber |
| Weight: | 0.19 lb/ft, 0.28 kg/m |
| Industry: | Industrial Manufacturing Equipment |
| Brand: | Parker |
| Maximum Operating Pressure: | 16 bar, 1.6 MPa, 235 psi |
| Product Type: | Push-Lok and Push-on Hoses |
| Technology: | Fluid & Gas Handling |
| Design Factor: | 4:1 |
| Vacuum Pressure Rating: | 0.51 bar, 15.06 inch-Hg, 382.53 mm-Hg |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 5.906 inch, 150 mm |
| Size: | -10 |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | 82 Series |
| Inside Diameter: | 5/8 inch, 15.9 mm |
| Maximum Operating Temperature: | 100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F) |
| Application: | All Markets (for a variety of applications), Automotive for water/air applications |
| Hose Reinforcement Material: | Braid of High Tensile Fiber |
| Outside Diameter: | 0.909 inch, 23.1 mm |
| Media: | Air (General Industrial Air, Dry Air), Coolants (Water-Oil Emulsion, Water-Glycol), Lubricants, Water |
| Minimum Operating Temperature: | -40 °C |
| Hose I.D. (size): | -10 |
| Cover Material: | Synthetic Rubber High Performance |
