881PM-16PM

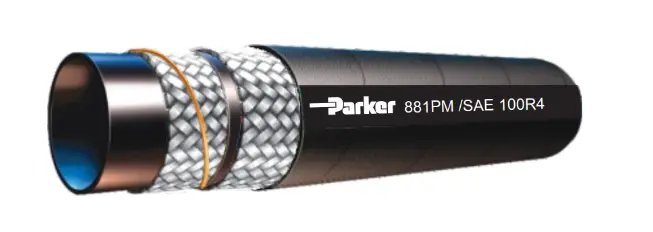

Description: Parker R4 Hose ID 1 Inch W.P. 17 Bar
Technical Specification
- Hose I.D : 1 lnch, 25.4 mm
- Hose O.D : 35.0 mm
- Working Pressure : 250 psi, 17 bar
- Minimum bend radius : 2.2 lnch, 55 mm
- Approx weight : 0.42 lbs/ft / 0.62 kg/m
- Inner tube : Synthetic rubber
- Reinforcement : Multiple layers of fibre braids and one helical wire
- Outer Cover : CR-Synthetic rubber
- Temp Range : -40°C to +100°C (-40°F to +212°F)
