881PM-20PM

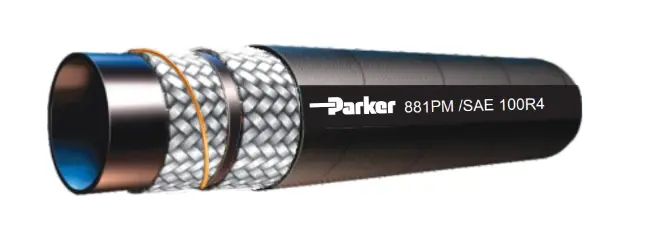

Description: Parker R4 Hose ID 1-1/2 Inch W.P. 14 Bar
Technical Specification
- Hose I.D : 1-1/4 lnch, 31.8 mm
- Hose O.D : 42.0 mm
- Working Pressure : 205 psi, 14 bar
- Minimum bend radius : 2.8 lnch, 70 mm
- Approx weight : 0.53 lbs/ft / 0.79 kg/m
- Inner tube : Synthetic rubber
- Reinforcement : Multiple layers of fibre braids and one helical wire
- Outer Cover : CR-Synthetic rubber
- Temp Range : -40°C to +100°C (-40°F to +212°F)
