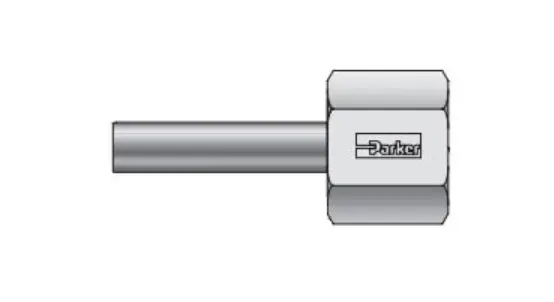

9-8 T7HG-SS
DESCRIPTION:
Parker Hannifin, original Patent Holder (US 6851729 B2), for "Tube Fitting, Medium Pressure" developed the MPI Medium Pressure compression fitting connections to be secure and gas-tight while being made manually (wrench turns) or hydraulic set tool. This connection has application throughout industry, including off-shore oil and gas exploration platforms, research labs, and other facilities that require operating pressures to 15,000 psi (1035 bar).
TECHNICAL DESCRIPTION:
Connection Type | Tube Stub to FNPT |
MPI™ Tube Stub | 9/16 |
Female NPT End | 1/2 |
A | 3.20 in |
B | 1.27 in |
NPT Thread | 1/2-14 |
W HEX | 1 3/8 in |
