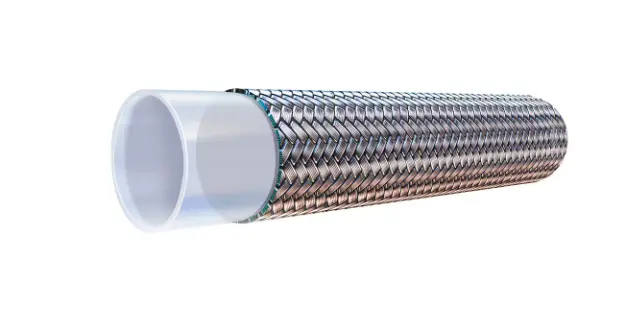

919-16-AV
DESCRIPTION:
Natural Smoothbore PTFE Hose meets SAE 100R14 requirements and features excellent chemical compatibility and handles temperatures up to 450°F.
TECHNICAL DESCRIPTION:
| Design Factor: | 4:1 |
| Hose Type: | SS Braid, Natural |
| Media: | Air, Chemicals (Adhesive), Food & Beverage (Cooking Oil), Industrial Fluids, Water |
| Specifications Met: | FDA 21 CFR 177.1550, SAE 100R14A |
| Maximum Operating Pressure: | 1000 psi, 6.9 MPa, 69 bar |
| Maximum Operating Temperature: | 450 °F, 232 °C |
| Minimum Bend Radius: | 9 inch, 229 mm |
| Minimum Operating Temperature: | -100 °F, -73 °C |
| Compatible Fitting: | 91N Series, 90 Series |
| Application: | Adhesive Dispensing, Chemical Transfer, Cooling Lines, Hydraulics, Compressed Air/Gases, Medical Gases |
| Inside Diameter: | 7/8 inch, 22 mm |
| Weight: | 0.27 lb/ft, 0.40 kg/m |
| Product Type: | PTFE Hose |
| Hose Inner Tube Material: | Natural, Polytetrafluoroethylene (PTFE) |
| Cover Material: | n/a |
| Size: | -16 |
| Vacuum Pressure Rating: | 14 inch-Hg, 355 mm-Hg |
| Hose Reinforcement Material: | Braid of Stainless Steel |
| Product Style: | Smoothbore |
| Outside Diameter: | 1.060 inch, 26.9 mm |
| Size: | -16 |
| Length: | Random |
