939-12-AV
DESCRIPTON:

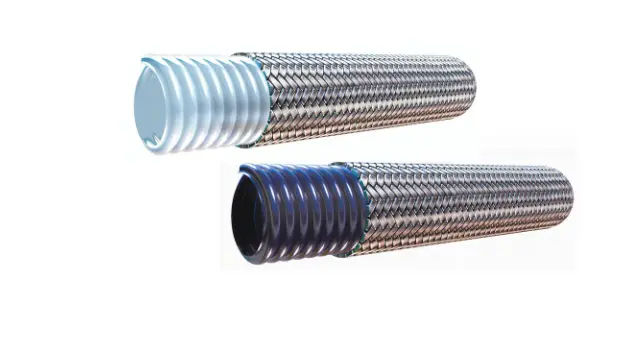

Parker Convoluted 939/939B PTFE Hose features excellent flexibility and kink resistance for superior performance in chemical transfer, high temperature hydraulics, and hose applications requiring tight routings.
TECHNICAL SPECIFICATION:
| Size: | -12 |
| Hose Type: | Natural PTFE |
| Design Factor: | 4:1 |
| Hose I.D. (inch): | 3/4 |
| Specifications Met: | FDA 21 CFR 177.1550 (Tube) |
| Compatible Fitting: | 93N Series |
| Maximum Operating Pressure: | 1100 psi, 7.6 MPa, 76 bar |
| Maximum Operating Temperature: | 450 °F, 232 °C |
| Minimum Operating Temperature: | -100 °F, -73 °C |
| Minimum Bend Radius: | 3.75 inch, 95 mm |
| Application: | Fluid Handling, Compressed Air/Gases, Tools & Equipment, Industrial, Fleet & Automotive, Instrumentation, Hydraulics, Process Control, Ultra High Purity / Semi-Conductor |
| Weight: | 0.32 lb/ft, 0.47 kg/m |
| Cover Material: | n/a |
| Hose Inner Tube Material: | Polytetrafluoroethylene (PTFE) |
| Hose Reinforcement Material: | Stainless Steel |
| Size: | -12 |
| Vacuum Pressure Rating: | 28 inch-Hg, 711.2 mm-Hg |
| Media: | Chemicals, Lubricants (Oils), Petroleum Hydraulic Fluids, Water, Food Abrasive Powders, Food & Beverage, Industrial Fluids, Industrial Gases, Steam, Fuels (Oil), Inert Gases |
| Inside Diameter: | 3/4 inch, 19 mm |
| Outside Diameter: | 27.7 mm, 1.090 inch |
