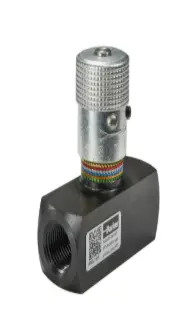

9N800SS
DESCRIPTION:
Parker's Colorflow N series hydraulic flow control, in-line needle valves meters flow in both directions or provides a reliable shut off. This needle valve flow control is used in air and oil applications and has standard and fine metering options.
Technical Specifications
| Maximum Operating Temperature: | +205°F |
| Connection Type: | BSPP |
| Maximum Flow Rate: | 15 |
| Maximum Operating Pressure: | 5000 |
| Actuation Type: | Manual |
| Connection Size: | 1/2 |
| Minimum Operating Temperature: | -40.0 |
| Body Material: | 303 Stainless Steel |
| Actuation Type: | Manual |
| Connection Type: | BSPP |
| Seal Material: | Nitrile |
| Body Material: | Stainless Steel |
| Needle option: | Standard |
| Product Style: | Needle Valve |
| Maximum Flow Rate: | 57 L/min, 15 gal/min |
| Knob Option: | Standard Knob |
| Maximum Operating Pressure: | 5000 psi |
| Maximum Operating Temperature: | 250 °F, 121 °C |
| Minimum Operating Temperature: | -40 °F, -40 °F |
| Mounting Type: | Inline |
| Brand: | Colorflow |
| Media: | Air, Oil, Water |
| Seal Material: | Nitrile |
