A1R015N3587
DESCRIPTION:

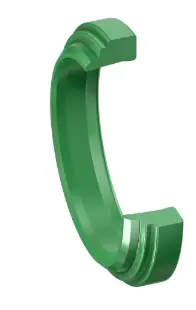

Wiper seal, single-acting, standard. ISO 6195, Type E.
TECHNICAL DESCRIPTION:
| Minimum Working Temperature (C): | -25 |
| Inside Diameter (mm): | 450 |
| Outside Diameter (mm): | 465 |
| Groove Width: | 6.5 |
| Maximum Working Temperature (C): | 100 |
| Media: | Hydraulic |
| Polymer Material Options: | NBR (Nitrile-Butadiene) |
| Maximum Operating Pressure: | 0 bar |
| Minimum Operating Temperature: | -50 to -10 °C |
| Maximum Operating Temperature: | 80 to 200 °C |
| Maximum Surface Speed: | 2 m/sec |
| Unit of Measure: | Length: mm |
| Cushioning Mechanism: | No |
| Thermal Application Type: | Standard moderate Temperature (-35 C to 100 C) °C |
| Element Height (mm): | 13 |
| Seal Material: | N3587 |
