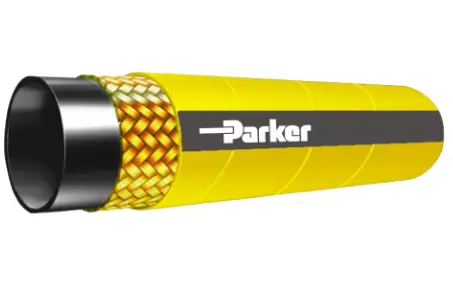

AMHPM-32PM
DESCRIPTION:
Airmaster hose is made as per IS 446 type 3 specification, design to meet the industry requirement also made for constant pressure applications, with abrasion & ozone resistant yellow colour cover.
TECHNICAL DESCRIPTION:
| Application: | High Pressure Rock Drill, Pneumatics |
| Cover Material: | Synthetic Rubber |
| Division: | Fluid Connectors India |
| Hose Inner Tube Material: | Synthetic Rubber |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -35 °C |
| Hose I.D. (inch): | 2 |
| Media: | Air (Compressed Air with traces of Oil) |
| Specifications Met: | IS 446, Type 3 |
| Hose Reinforcement Material: | 1 Braid of Wire |
| Inside Diameter: | 50.8 mm |
| Outside Diameter: | 63.5 mm |
| Maximum Operating Pressure: | 500 psi |
| Minimum Bend Radius: | 635 mm |
| Operating Temperature: | -35 to 100 °C |
| Weight: | 1.78 kg/m |
