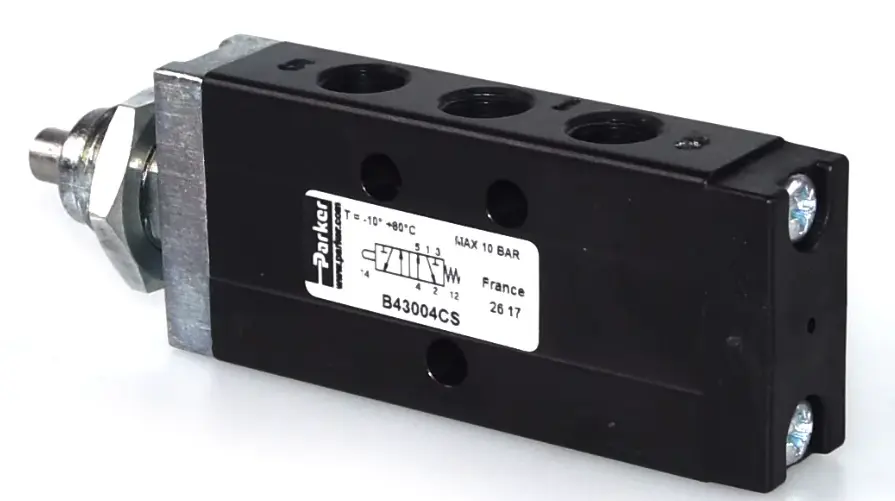

B43004CS
DESCRIPTION:
Parker B43004CS is a B43 Series mechanically operated directional control valve designed for pneumatic automation systems. It features a 5/2-way configuration, plunger actuation, and spring return mechanism, making it suitable for controlling double-acting pneumatic cylinders and other air-operated actuators. The valve has an aluminium body, G1/8 BSPP ports, and operates with compressed air or vacuum service up to 10 bar
Technical Description
| Parameter | Specification |
|---|---|
| Manufacturer | Parker Hannifin |
| Model Number | B43004CS |
| Series | B43 Series |
| Valve Type | Pneumatic Directional Control Valve |
| Function | 5/2-Way Valve |
| Actuation Method | Mechanical Plunger Operated |
| Return Type | Spring Return |
| Port Size | G1/8" BSPP |
| Body Material | Aluminium |
| Operating Medium | Filtered Compressed Air / Vacuum |
| Operating Pressure Range | Vacuum to 10 bar |
| Mounting Style | Body Ported Inline Mounting |
| Application | Control of Double-Acting Pneumatic Cylinders and Actuators |
| Operating Principle | Mechanical actuation shifts spool; spring returns valve to normal position |
