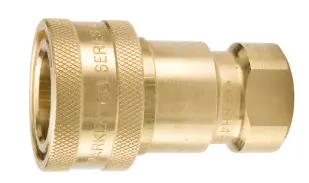

BH8-60-BSPP
DESCRIPTION:
60 series brass coupler, ISO 7241-1 series B
TECHNICAL DESCRIPTION:
| Seal Material: | Nitrile |
| Application: | General Purpose |
| Body Material: | Brass |
| Body Material: | Brass |
| Connection Type: | Female BSPP |
| Coupling Half: | Female Coupler |
| Maximum Operating Pressure: | 1500 |
| Connection Thread Size (inch): | 1 - 11-1/2 |
| Body Size (inch): | 1 |
| Specifications Met: | ISO 7241-1, series B |
| Maximum Operating Temperature: | 250 °F, 121 °C |
| Product Type: | Manual Connect |
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Valve Type: | Poppet |
| Flow Rate: | 189 L/min, 50 gal/min |
| Hex Size: | 1.62 inch |
| Vacuum Pressure Rating: | -0.9 bar, 27.4 inch-Hg |
| Ball Material: | Stainless steel |
| Valve Material: | Brass |
| Plating Type: | na |
