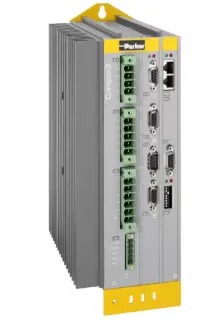

C3S075V4F10I11T40M00
DESCRIPTION:
C3S075V4 stand-alone servo drives have a power rating of 6.2kVA and feature scalable technology functions - from intelligent IEC 61131 drives with electronic CAM and PLCOpen function modules, down to basic analogue torque/velocity/position control.
TECHNICAL DESCRIPTION:
| Feedback Technology: | Resolver + SinCos (Hiperface) |
| Brand: | Parker |
| Interface Option: | Positioning via Digital I/O |
| Technology Option: | Electronic-CAM Control based on IEC61131 |
| Product Type: | Servo Drive |
| Drive Axis Type: | Single Axis Technology |
| Additional Integral Options: | None |
| Product Series: | Compax3 |
| Input Voltage: | 3*400/480 VAC |
| Continuous Output Current Rating: | 7.5 A |
| Compatible Motor Type: | Brushless Servo, Direct Drive Servo, Frameless Servo, Induction, Linear Servo, Spindle |
| Compatible Feedback Device: | Resolver, Incremental Encoder, EnDat Absolute Encoder, Hiperface Absolute Encoder |
| Modes of Control: | Programmable Control - IEC 61131, Electronic Gearing, Electronic CAM, Position Control (External Command), Velocity Control (External Command), Torque Control (External Command), Analog Command Input, Step/Direction Command Input |
| Communication Interface: | RS232/RS485, CANopen, DeviceNet, Profibus, Profinet, PowerLink, Ethernet TCP/IP, EtherCAT |
| Operating Temperature: | 0 to 45 °C, 32 to 113 °F |
| Specifications Met: | CE (EMC & LVD), UL Recognised, cUL Recognised, RoHS Compliance |
