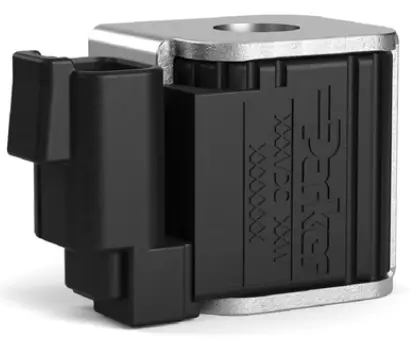

CCP230M

DESCRIPTION:

Replacement solenoid 1/2" Super Coil - "puissant" (high-power) wattage - Parker Hannifin - 230Vac (50Hz/60Hz) solenoid - DIN 43650 connector - Glass-filled thermoplastic polyester PET housing - IP69K

TECHNICAL DESCRIPTION:

Primary brand: Parker Hannifin

Main function: Coil (Solenoid)

Product series / family name: Valves spare parts > Replacement solenoids

Functions: Replacement solenoid 1/2" Super Coil

Design: "puissant" (high-power) wattage

Connection type: DIN 43650 connector

Control Voltage (AC): 230Vac (50Hz/60Hz)

Degree of protection: IP69K

Material: Glass-filled thermoplastic polyester PET housing

Ambient air temperature for operation: -40°F...+392°F / -40°C...+200 °C

Order code / Manufacturer SKU: CCP230M

Manufacturer product status: Commercialized

Benefits: Integral Deutsch connector coil exceeds IP69K standards

Integral Deutsch connector coil thermal shock dunk test rated

Universal 50/60Hz operation

Waterproof coil hermetically sealed requires no O-rings or waterproofing kits

External plated steel flux-carrying band (unlike encapsulated band) enables coil to withstand severe thermal shocks without cracking

Symmetrical coil can be reversed without affecting performance
