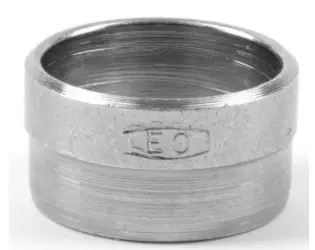

D10LL71X
DESCRIPTION:
Ermeto DIN fitting components for high pressure hydraulic tube fittings are indispensable items in order to build up a complete fitting series (EO-PSR, EO-2, EO2-FORM)
TECHNICAL DESCRIPTION:
| Body Material: | Stainless Steel |
| Product Style: | Cutting Ring |
| Connection 1 Size: | 10 mm (O.D.) |
| Brand: | Ermeto |
| Division: | High Pressure Connectors Europe Division |
| Technology: | Fluid & Gas Handling |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Application: | Industrial, Hydraulics |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Components, Cutting Ring |
| Product Series: | EO Very Light |
| Configuration: | n/a |
| Maximum Operating Pressure: | 100 bar |
| Shape: | n/a |
| Connection 1 Type: | Tube |
| Connection 1 Size: | 10 mm Tube O.D. |
| Specifications Met: | ISO 8434 |
| For Fluid Type: | Hydraulic Fluids, Chemicals, Fuels, Gases, Steam |
| Body Material: | Stainless Steel |
| Seal Type: | Sealing Edge |
| Seal Material: | n/a |
| Maximum Ambient Temperature: | 400 °C, 752 °F |
| Minimum Ambient Temperature: | -60 °C, -76 °F |
| Maximum Fluid Temperature: | 400 °C, 752 °F |
| Minimum Fluid Temperature: | -60 °C, -76 °F |
