D1VW001CNYPZ5

DESCRIPTION:

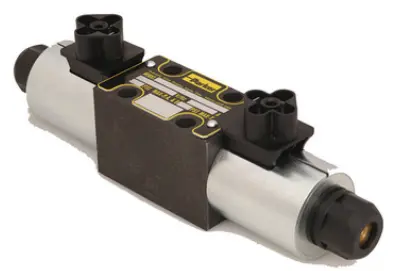

D1VW001CNYPZ5 PARKER electromagnetic valve for Doosan machine 24V 110V, Series D1VW directional control valves are high performance, 4-chamber, direct operated, wet armature solenoid controlled, 3 or 4-way valves. They are available in 2 or 3-position and conform to NFPA’s D03, CETOP 3 mounting patterns.

TECHNICAL DESCRIPTION:

• HYDRAULIC SOLENOID VALVE
• DOUBLE SOLENOID
• 3 POSITION
• SPRING CENTERED
• CONTROL VOLTAGE 110/120 VAC 50/60 HZ
• 5000 PSI
• MAX FLOW 22 GPM
• DIN WITH PLUG
• Soft shift available.
• 19 standard spool styles available (for other spools –
• Consult Factory).
• Proportional spools.
• DC surge suppression.
• Eight electrical connection options.
• AC & DC lights available (CSA approval for solenoids and lights).
