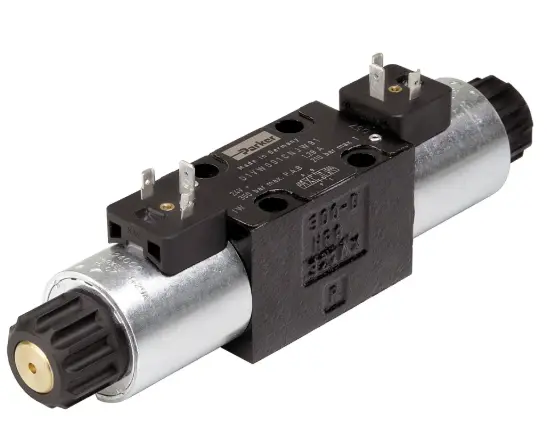

D1VW020BNTW

​DESCRIPTION:

The directional control valve series D1VW in NG06 (CETOP 03 / NFPA D03) provides high functional limits up to 80 l/min in combination with a very low, energy-saving pressure drop due to optimized flow passages. The maximum pressure is 350 bar.

Features/Benefits:

• Compact, proven design that represents our long-term experience in hydraulics

• Wide range of spools - fits all hydraulic systems

• Shortest lead time - no warehousing necessary

• Optional soft shift option - for smooth operation

• Optional manual override

• Optional ex proof version

Product Specifications

Core Product: in EMEA

Seal Material: FPM , NBR NBR, FPM

Operation Type: Direct

Maximum Flow Rate: Depending on spool, 20 - 80 L/min

Input Voltage: 205 VDC , 98 VDC , 24 VDC , 110 VAC, 50 Hz , 110/120 VAC, 50/60 Hz , 12 VDC , 230/240 VAC, 50/60 Hz , 230 VAC, 50 Hz

Connection Type: Connector as per EN 175301-803, Explosion proof with cable glands

Solenoid Option: Explosion proof solenoids Ex e mb II T4Gb + IECEx conformity , Soft shift , Standard , With lockable manual override , Without manual override

Mounting Type: Subplate mounting

Actuation Type: Solenoid

Product Series: Directional control valve

Orifice Size: 0.75 mm , na , 0.5 mm

Marking: Proprietary Item , Standard

Weight: Depending on configuration,1.5 - 2.7 kg

Maximum Operating Pressure: 350 bar

Maximum Operating Temperature: 60 °C

Minimum Operating Temperature: Depending on seal type, -20, -25 °C

For Fluid Type: Hydraulic oil according to DIN 51524, water glycol

Function: Depending on configuration, 2-Way, 3-Way

Port Connection: NG06 / CETOP 03

Mounting Position: Unrestricted, preferably horizontal

Body Material: Cast iron
