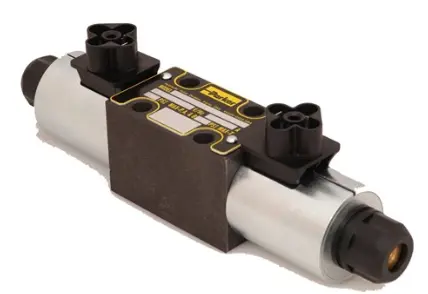

D1VW020DNYPZ5

DESCRIPTION:

4-way 2-positions (4/2) directional control hydraulic direct-acting double solenoid valve (21GPM) with manual override + rectified coil - circuit diagram "020D" - class F coil - Parker Hannifin (D1VW series) - NFPA pattern D03 - 110Vac / 120Vac (50Hz/60Hz) solenoid (30W) - DIN 43650 connector (delivered with plg.) + indic. light - Ductile Iron body / NBR seal - IP65 - Mounting on sub-plate (Porting pattern according to DIN 24340-A6 ISO 4401-AB-03-4-A and NFPA D03 CETOP R35H 4.2-4-03) - mech. detent / dual operator bistable - 5000psi / 350bar max. operating pressure (P/A/B) - 1500psi / 103bar tank pressure - for oil media

TECHNICAL DECSRIPTION:

• Primary brand: Parker Hannifin
• Main function: Valve (Electrically actuated)
• Product series / family name: Valves (Hydraulic) > Solenoid-operated
• Sub-range name: D1VW series
• Functions: Hydraulic direct-acting double solenoid valve
• Valve function: 4-way 2-positions (4/2) directional control
• mech. detent: dual operator bistable
• Design: manual override
• rectified coil: circuit diagram "020D"
• class F coil: for oil media
• Flow: 80L/min (LPM) / 21gallons/min (GPM) max. flow
• Pressure: 5000psi / 350bar max. operating pressure (P/A/B) 1500psi / 103bar tank pressure
• Temperature: -25°C...+70°C / -13°F...+158°F media temperature
• Connection type: NFPA pattern D03 DIN 43650 connector (delivered with plg.) + indic. light
• Control Voltage (AC): 110Vac / 120Vac (50Hz/60Hz)
• Mounting mode: Mounting on sub-plate (Porting pattern according to DIN 24340-A6 ISO 4401-AB-03-4-A and NFPA D03 CETOP R35H 4.2-4-03)
• Degree of protection: IP65
• Material: Ductile Iron body NBR seal
• Ambient air temperature for operation: -25°C...+60 °C
• Power consumption: 30 W
• Order code / Manufacturer SKU: D1VW020DNYPZ5
• Compliant with standard(s): ISO 4406 (1999) (filtration) ISO 9461 (solenoid)
• DIN 51524 (hydraulic oil): EN 60529 EN 175301-803
