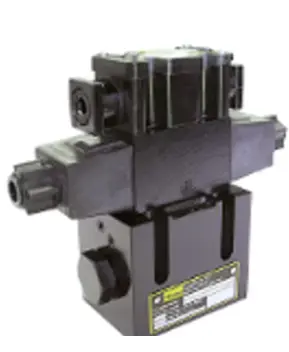

D31VW001C4NYW
DESCRIPTION:
Parker’s D31 directional control valves are 5-chamber, pilot operated, solenoid controlled valves.
Technical Specifications
| Mounting Type: | Subplate |
| Maximum Flow Rate: | 30 gal/min |
| Maximum Operating Pressure: | 5104 psi/ 345 bar |
| Coil Specifications Met: | Omit |
| Solenoid Option: | Omit - High Watt |
| Maximum Operating Temperature: | 140 °F |
| Maximum Flow Rate: | 40 gal/min |
| Minimum Operating Temperature: | -4 °F |
| Actuation Type: | Hydraulic Pressure |
| Options: | Omit |
| Connection Type: | DIN w/o Plug |
| Spool Position: | Double Solenoid, 3-Position, Spring Centered |
| Spool Code: | 4-Way, 3-Position, All Ports Blocked |
| Body Material: | Gray Iron |
| Power Supply Voltage: | 120/60 - 110/50 VAC |
| Pilot Inlet / Drain Locations: | Internal Pilot / Internal Drain |
| Seal Material: | Nitrile |
| Valve Type: | Pilot Operated Directional Control Valve |
| Maximum Operating Pressure: | 5000 psi, 345 bar |
| Mounting Type: | Subplate |
| Weight: | 12 lb, 5.4 kg |
| Additional Options: | Consult catalog for additional features. |
| Size: | NFPA D05H, CETOP 5, D03 Pilot, NFPA Port |
