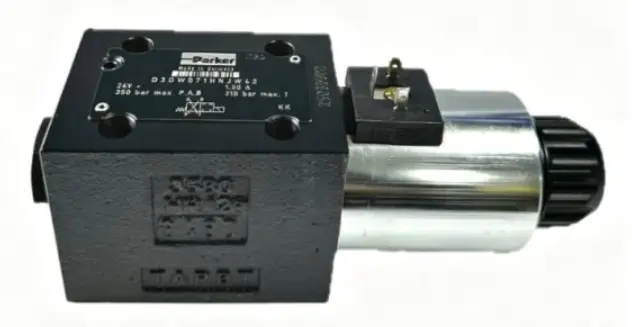

D3DW071HNJW
DESCRIPTION:
Parker D3DW071HNJW is a high-performance, 5-chamber, direct-operated, wet-armature solenoid directional control valve, designed for reliable flow direction control in medium-to-high pressure hydraulic systems
TECHNICAL DESCRIPTION:
Brand & Model: Parker D3DW071HNJW
Product Type: Solenoid Operated Directional Control Valve
Nominal Size: NG 10 (CETOP 5, NFPA D05)
Max Operating Pressure: P, A, B: 345 bar (5000 psi); T: 207 bar (3000 psi)
Max Flow Rate: Up to 33 GPM (125 L/min)
Spool Function: 071 – 4-way, 2-position, spring-biased; P→A, B→T when energized
Solenoid: Single solenoid, 24 VDC (J code)
