DRPM-24PM

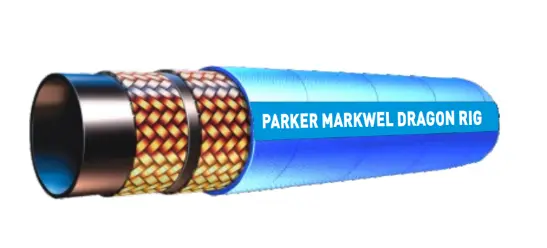

Description: Parker R4 Hose ID 1-1/2 Inch W.P. 124 Bar
Technical Specification
- Hose I.D : 1-1/2 lnch, 38.1 mm
- Hose O.D : 50.2 Inch, 53.0 mm
- Working Pressure : 1800 psi, 124 bar
- Minimum bend radius : 20 lnch, 500 mm
- Approx weight : 1.58 lbs/ft / 2.35 kg/m
- Inner tube : Synthetic rubber
- Reinforcement : Two wire braid
- Temp Range : -40°C to +150°C (-40°F to +302°F)
