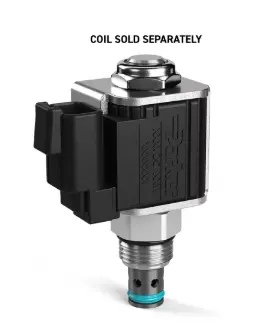

DSL081NRE
DESCRIPTION:
REGIONAL - Parker’s 2-way poppet solenoid valves check flow in one direction free flow opposite; normally open or normally closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm). Low leakage
Technical Specifications
| Flow Rate: | 8 GAL/MIN, 30 L/MIN |
| Maximum Inlet Pressure Rating: | 3600 PSI, 250 BAR |
| Division: | Hydraulic Valve Systems Division |
| Flow Rate: | 8 gal/min, 30 L/min |
| Maximum Inlet Pressure Rating: | 3600 psi, 250 bar |
| Configuration: | Normally Open |
| Actuation Type: | Electrical, Manual |
| Seal Material: | D-Ring (Standard) |
| Configuration: | Normally Open |
| Actuation Type: | Electrical, Manual |
| Wire Mesh Screen Included: | No |
| Seal Material: | D-Ring (Standard) |
| Wire Mesh Screen Included: | No |
| Maximum Flow Rate: | 8 gal/min, 30 L/min |
| Mounting Type: | Screw in cartridge valve |
| Flow Direction: | Side to Nose (2-1) |
| Operation Type: | Solenoid operated, Manually operated |
| Maximum Operating Pressure: | 3600 psi, 250 bar |
| Leak Rate: | 5 drops/min |
| Cavity Size: | C08-2 |
| Function: | 2-way |
| Free Reverse Flow: | Yes |
| Override Functionality: | Push Type w/Extended Rod |
| Adjustment Mechanism: | N/A |
| For Fluid Type: | Mineral-based or synthetic hydraulic fluids |
| Maximum Kinematic Viscosity: | 45-2000 SSU (6 to 420 cSt) |
| Filter Efficiency Rating: | ISO 4406 18/16/13, SAE Class 4 |
| Valve Material: | All parts steel. All operating parts hardened steel |
| Installation Torque: | 23 to 27 lb-ft, 31 to 37 Nm |
| Coil Nut Tightening Torque: | 5 to 7 lb-ft, 7 to 10 Nm |
| Operating Temperature: | -35 to +200 °F, -37 to +93 °C |
| Maximum Operating Temperature: | +200 °F, +93 °C |
| Minimum Operating Temperature: | -35 °F, -37 °C |
| Coil Type: | 1/2" Super Coil |
| Input Voltage: | 85% of rated voltage at 72°F (20°C) min |
| Response Time: | 50 ms |
| Weight: | 0.25 lb, 0.11 kg |
| Body Material: | N/A |
