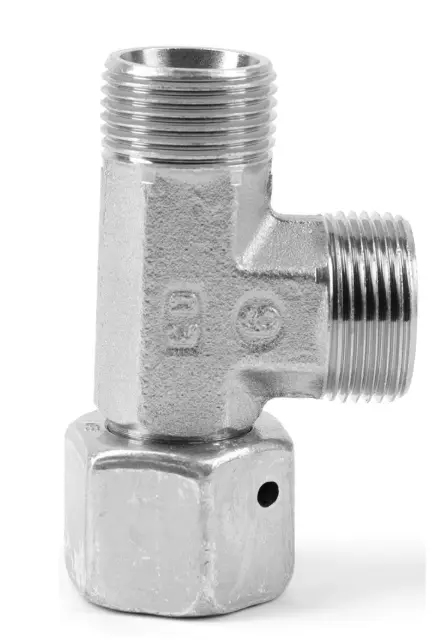

EL10LOMDCF
DESCRIPTION:
The key function of Ermeto DIN tube to swivel high pressure hydraulic tube fittings is to connect different numbers of tubes or hoses. The fittings are available in steel and stainless steel.
Technical Specifications
| Connection 3 Size: | 10 mm (O.D.) |
| Accessories Included: | n/a |
| Connection 2 Size: | 10 mm (O.D.) |
| Body Material: | Steel |
| Connection 1 Size: | 10 mm (O.D.) |
| Seal Material: | NBR |
| Brand: | Ermeto |
| Product Series: | EO Light |
| Shape: | Run Tee |
| Division: | High Pressure Connectors Europe Division |
| Connection 1 Type: | Male 24° Cone |
| Technology: | Fluid & Gas Handling |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Connection 2 Type: | Male 24° Cone |
| Connection 3 Type: | Male 24° Cone (with O-Ring) |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Equipment, Oilfield, Packaging |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Adjustable Position |
| Product Series: | EO Light |
| Configuration: | Tube to Swivel |
| Maximum Operating Pressure: | 500 bar |
| Shape: | Run Tee |
| Connection 1 Type: | Male, 24° Cone |
| Connection 1 Size: | 10 mm Tube O.D. |
| Connection 2 Type: | Male, 24° Cone |
| Connection 2 Size: | 10 mm Tube O.D. |
| Connection 3 Type: | Male, 24° Cone (with O-Ring) |
| Connection 3 Size: | 10 mm Tube O.D. |
| Specifications Met: | DIN, ISO 8434, ISO 8343 |
| For Fluid Type: | Hydraulic Fluids, Chemicals, Fuels, Gases, Steam |
| Accessories Included: | n/a |
| Body Material: | Steel |
| Seal Type: | O-Ring |
| Seal Material: | NBR |
| Maximum Ambient Temperature: | 300 °C, 572 °F |
| Minimum Ambient Temperature: | -40 °C, -40 °F |
| Maximum Fluid Temperature: | 300 °C, 572 °F |
| Minimum Fluid Temperature: | -40 °C, -40 °F |
