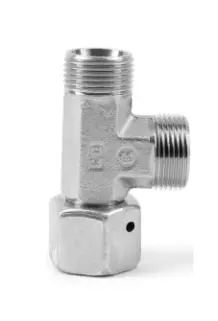

EL10SOMD71
DESCRIPTION:
The key function of Ermeto DIN tube to swivel high pressure hydraulic tube fittings is to connect different numbers of tubes or hoses. The fittings are available in steel and stainless steel.
TECHNICAL DESCRIPTION:
| Body Material: | Stainless Steel |
| Connection 2 Size: | 10 mm (O.D.) |
| Maximum Operating Pressure: | 630 bar |
| Connection 1 Size: | 10 mm (O.D.) |
| Connection 3 Size: | 10 mm (O.D.) |
| Maximum Fluid Temperature: | 400 °C, 752 °F |
| Brand: | Ermeto |
| Division: | High Pressure Connectors Europe Division |
| Shape: | Run Tee |
| Connection 1 Type: | Male 24° Cone |
| Maximum Ambient Temperature: | 400 °C, 752 °F |
| Connection 2 Type: | Male 24° Cone |
| Connection 3 Type: | Male 24° Cone (with O-Ring) |
