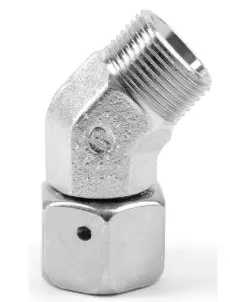

EV12LOMDCF
DESCRIPTION:
The key function of Ermeto DIN tube to swivel high pressure hydraulic tube fittings is to connect different numbers of tubes or hoses. The fittings are available in steel and stainless steel.
TECHNICAL DESCRIPTION:
| Accessories Included: | n/a |
| Connection 2 Size: | 12 mm (O.D.) |
| Body Material: | Steel |
| Seal Material: | NBR |
| Connection 1 Size: | 12 mm (O.D.) |
| Product Series: | EO Light |
| Brand: | Ermeto |
| Division: | High Pressure Connectors Europe Division |
| Shape: | Elbow 45° |
| Connection 1 Type: | Male 24° Cone |
| Technology: | Fluid & Gas Handling |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Connection 2 Type: | Male 24° Cone (with O-Ring) |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Equipment, Oilfield, Packaging |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Adjustable Position |
| Product Series: | EO Light |
| Configuration: | Tube to Swivel |
| Maximum Operating Pressure: | 315 bar |
| Shape: | Elbow 45° |
| Connection 1 Type: | Male, 24° Cone |
| Connection 1 Size: | 12 mm Tube O.D. |
| Connection 2 Type: | Male, 24° Cone (with O-Ring) |
| Connection 2 Size: | 12 mm Tube O.D. |
| Specifications Met: | DIN, ISO 8434, ISO 8343 |
| For Fluid Type: | Hydraulic Fluids, Chemicals, Fuels, Gases, Steam |
| Accessories Included: | n/a |
| Body Material: | Steel |
| Seal Type: | O-Ring |
| Seal Material: | NBR |
| Maximum Ambient Temperature: | 300 °C, 572 °F |
| Minimum Ambient Temperature: | -40 °C, -40 °F |
| Maximum Fluid Temperature: | 300 °C, 572 °F |
| Minimum Fluid Temperature: | -40 °C, -40 °F |
