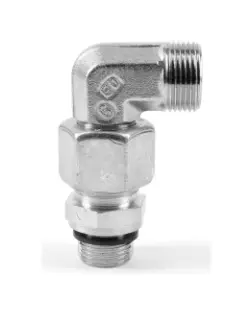

EW08ZSREDCF
DESCRIPTION:
EO-2 fittings have elastomeric seals on all joints for reliable, leak free operation without retightening. EO-2 is designed for metric tube, according German standards DIN 3861 and DIN 2353, now represented by international standard ISO 8434-1
TECHNICAL DESCRIPTION:
| Connection 1 Size: | 8 mm (O.D.) |
| Connection 2 Type: | Male BSPP |
| Accessories Included: | Pre-assembled with EO-2 Functional Nut |
| Seal Type: | ED Seal |
| Product Series: | EO Heavy |
| Connection 2 Size: | G 1/4 |
| Body Material: | Steel |
| Connection 1 Type: | Male 24° Cone |
| Brand: | Ermeto |
| Shape: | Elbow 90° |
| Technology: | Fluid & Gas Handling |
| Maximum Ambient Temperature: | 150 °C, 320 °F |
| Maximum Fluid Temperature: | 120 °C, 248 °F |
| Product Type: | Hydraulic Fittings |
| Product Style: | Adjustable Position |
| Product Series: | EO Heavy |
| Configuration: | Tube to Swivel |
| Maximum Operating Pressure: | 800 bar |
