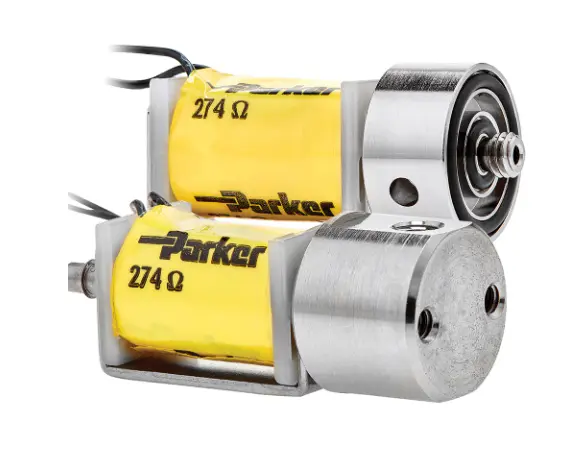

FG 992-000002-007
DESCRIPTION:
Parker’s 11/25/26 miniature solenoid valves are designed for medical, analytical, and clinical devices that require reliable consistent performance with low outgassing.
TECHNICAL DESCRIPTION:
| Body Material: | Brass 360 HO2, 430 FR SS, 300 Series SS |
| Flow Rate: | 46 SLPM |
| Maximum Flow Rate: | 46 SLPM |
| Body/Elastomer Materials: | Brass/ FKM |
| Vacuum to Pressure Range: | Vacuum to Pressure Rating |
| Voltage (VDC): | 24 |
| Maximum Operating Pressure: | 25 psi, 1.72 bar |
| Orifice Size: | 0.102 inch, 2.59 mm |
| Pneumatic Connection Stem: | None |
| Pneumatic Body Connection: | No Barbs |
| Maximum Operating Temperature: | 158 °F, 70 °C |
| Minimum Operating Temperature: | 32 °F, 0 °C |
| Application Pressure Requirement: | 0-25 psi / .102" orifice |
| Valve Configuration Type: | 2-Way Normally Closed Universal |
| Function: | Bi-directional |
| Cycles per Lifetime: | 202 Million |
| Actuation Type: | Solenoid |
| Operation Type: | Electronic |
| Control Method: | Current or Voltage |
| Power Consumption: | 1.0 W |
| Input Voltage: | 24 VDC |
| Electrical Connection: | 18" Wire Leads |
| Seal Material: | FKM |
| Thermal Compensation: | Non-Thermally Compensated |
| Electrical Connection: | 18" Wire Leads |
| Length: | 2.04 inch, 51.7 mm |
| Width: | 0.63 inch, 15.9 mm |
| Height: | 0.67 inch, 17.0 mm |
| Weight: | 2.1 oz, 60 g |
| Leak Rate: | < 0.016 cm3/min of Air |
| Mounting Type: | Mounting Screw |
| Connection Type: | Manifold Mount |
| Connection Size: | 4-40 x 5/8" Pan Head Phillips Screw |
| For Fluid Type: | Gases |
| Industry Application: | Oxygen Conservers and Concentrators, Sieve bed switching, Anesthesia Delivery, Compression Therapy, Gas Chromatography, Insufflators, Flow control/shut-off |
| Configuration: | n/a |
