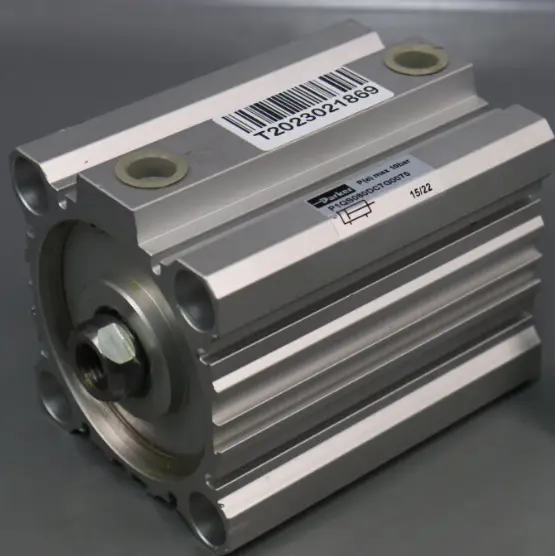

FG P1QS080DC7G0075
DESCRIPTION:
The Parker FG P1QS080DC7G0075 is a P1Q Series compact pneumatic cylinder designed for applications where installation space is limited but high force output is required
TECHNICAL DESCRIPTION:
| Parameter | Specification |
|---|---|
| Series | P1Q Compact Cylinder Series |
| Cylinder Type | Compact Pneumatic Cylinder |
| Operating Principle | Double-Acting |
| Bore Size | 80 mm |
| Stroke Length | 75 mm |
| Piston Rod Type | Female Threaded Piston Rod |
| Magnetic Piston | Yes (Code G) |
| Mounting Style | Compact Square Body |
| Operating Medium | Filtered Compressed Air |
| Maximum Operating Pressure | 10 bar (145 psi) |
| Operating Temperature | -5°C to +60°C |
| Cushioning | Built-in Buffer Cushioning |
| Cylinder Material | Chrome-Plated Steel (80 mm Bore Version) |
| Standard | ISO 15524 Compact Cylinder |
| Sensor Compatibility | Flush-Mount Magnetic Sensors |
| Typical Applications | Automation Equipment, Packaging Machines, Material Handling Systems, Pneumatic Actuation |
