FM16SCF-AV
DESCRIPTION:
Ermeto DIN fitting components for high pressure hydraulic tube fittings are indispensable items in order to build up a complete fitting series (EO-PSR, EO-2, EO2-FORM).
Technical Specifications
| Connection 2 Size: | M24x1.5 |
| Connection 1 Size: | 16 mm (O.D.) |

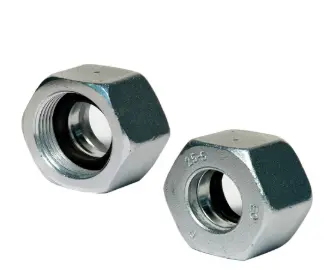

| Product Style: | EO2-Functional Nut |
| Body Material: | Steel |
| Brand: | Ermeto |
| Division: | High Pressure Connectors Europe Division |
| Technology: | Fluid & Gas Handling |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Application: | Industrial, Hydraulics |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Components, EO2-Functional Nut |
| Product Series: | EO Heavy |
| Configuration: | Tube to Port |
| Maximum Operating Pressure: | 630 bar |
| Shape: | n/a |
| Connection 1 Type: | Tube |
| Connection 1 Size: | 16 mm Tube O.D. |
| Connection 2 Type: | Metric |
| Connection 2 Size: | M24x1.5 mm Thread |
| Specifications Met: | ISO 8434 |
| For Fluid Type: | Hydraulic Fluids, Chemicals, Fuels, Gases, Steam |
| Body Material: | Steel |
| Seal Type: | Sealing Edge |
| Seal Material: | NBR |
| Maximum Ambient Temperature: | 300 °C, 572 °F |
| Minimum Ambient Temperature: | -40 °C, -40 °F |
| Maximum Fluid Temperature: | 300 °C, 572 °F |
| Minimum Fluid Temperature: | -40 °C, -40 °F |
