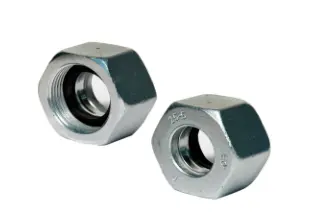

FM22L71
DESCRIPTION:
Ermeto DIN fitting components for high pressure hydraulic tube fittings are indispensable items in order to build up a complete fitting series (EO-PSR, EO-2, EO2-FORM).
TECHNICAL DESCRIPTION:
| Connection 1 Size: | 22 mm (O.D.) |
| Connection 2 Size: | M30x2.0 |
| Body Material: | Stainless Steel |
| Product Style: | EO2-Functional Nut |
| Brand: | Ermeto |
| Division: | High Pressure Connectors Europe Division |
| Maximum Ambient Temperature: | 400 °C, 752 °F |
| Maximum Fluid Temperature: | 400 °C, 752 °F |
| Application: | Industrial, Hydraulics |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Components, EO2-Functional Nut |
| Product Series: | EO Light |
| Configuration: | Tube to Port |
| Maximum Operating Pressure: | 160 bar |
