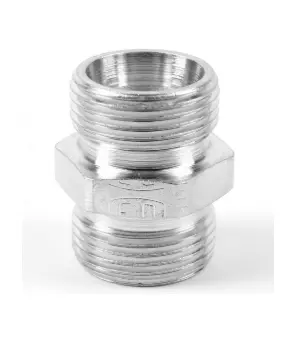

G06LCFX
DESCRIPTION:
The main function of Ermeto DIN tube to tube high pressure hydraulic tube fittings is to connect different numbers of tubes. This broad range of fittings is available in steel and in stainless steel.
TECHNICAL DESCRIPTION:
| Connection 1 Size: | 6 mm (O.D.) |
| Accessories Included: | n/a |
| Connection 2 Size: | 6 mm (O.D.) |
| Product Style: | Union |
| Body Material: | Steel |
| Brand: | Ermeto |
| Shape: | Straight |
| Division: | High Pressure Connectors Europe Division |
| Technology: | Fluid & Gas Handling |
| Connection 1 Type: | Male 24° Cone |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Connection 2 Type: | Male 24° Cone |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Equipment, Oilfield, Packaging |
| Product Type: | Hydraulic DIN Fittings |
| Shape: | Union, Straight |
| Product Series: | EO Light |
| Configuration: | Tube to Tube |
| Maximum Operating Pressure: | 500 bar |
| Connection 1 Type: | Male, 24° Cone |
| Connection 1 Size: | 6 mm Tube O.D. |
| Connection 2 Type: | Male, 24° Cone |
| Connection 2 Size: | 6 mm Tube O.D. |
| Specifications Met: | DIN, ISO 8434 |
| For Fluid Type: | Hydraulic Fluids, Chemicals, Fuels, Gases, Steam |
| Accessories Included: | n/a |
| Body Material: | Steel |
| Seal Type: | Sealing Edge |
| Seal Material: | n/a |
| Maximum Ambient Temperature: | 300 °C, 572 °F |
| Minimum Ambient Temperature: | -40 °C, -40 °F |
| Maximum Fluid Temperature: | 300 °C, 572 °F |
| Minimum Fluid Temperature: | -40 °C, -40 °F |
