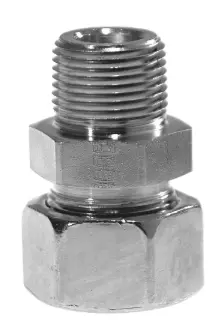

GE08L3/8NPTCFX-AV
DESCRIPTION:
The main function of Ermeto DIN male stud high pressure hydraulic tube fittings is to connect different numbers of tubes and hoses. This broad range of fittings is available in steel and in stainless steel.
Technical Specifications
| Seal Material: | Metal Sealing Edge |
| Body Material: | Steel |
| Connection 2 Size: | 3/8"-18 |
| Product Series: | EO Light |
| Brand: | Ermeto |
| Shape: | Straight |
| Division: | High Pressure Connectors Europe Division |
| Technology: | Fluid & Gas Handling |
| Connection 1 Type: | Male 24° Cone |
| Connection 1 Size: | 8 mm (O.D.) |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Connection 2 Type: | Male NPT |
| Optional Accessories: | n/a |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Hydraulics, Oilfield, Packaging |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Stud Fitting |
| Product Series: | EO Light |
| Configuration: | Tube to Port |
| Maximum Operating Pressure: | 315 bar |
| Shape: | Straight |
| Connection 1 Type: | Male, 24° Cone |
| Connection 1 Size: | 8 mm Tube O.D. |
| Connection 2 Type: | Male, NPT (SAE J476) |
| Connection 2 Size: | 3/8"-18 inch |
| Specifications Met: | SAE J476 |
| For Fluid Type: | Hydraulic Fluids, Chemicals, Fuels, Gases, Steam |
| Accessories Included: | n/a |
| Body Material: | Steel |
| Seal Type: | Sealing Edge |
| Seal Material: | Metal |
| Maximum Ambient Temperature: | 120 °C, 248 °F |
| Minimum Ambient Temperature: | -40 °C, -40 °F |
| Maximum Fluid Temperature: | 120 °C, 248 °F |
| Minimum Fluid Temperature: | -40 °C, -40 °F |
