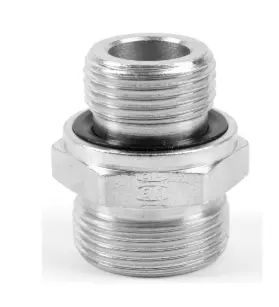

GE08LREDOMDCF
DESCRIPTION:
The main function of Ermeto DIN male stud high pressure hydraulic tube fittings is to connect different numbers of tubes and hoses. This broad range of fittings is available in steel and in stainless steel.
TECHNICAL DESCRIPTION:
| Connection 2 Size: | G 1/4 A |
| Maximum Operating Pressure: | 500 bar |
| Body Material: | Steel |
| Brand: | Ermeto |
| Product Series: | EO Light |
| Shape: | Straight |
| Maximum Ambient Temperature: | 120 °C, 248 °F |
| Connection 1 Type: | Male 24° Cone |
Maximum Fluid Temperature:
| 120 °C, 248 °F |
| Connection 1 Size: | 8 mm (O.D.) |
| Connection 2 Type: | Male BSPP |
| Optional Accessories: | n/a |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Stud Fitting |
| Product Series: | EO Light |
| Configuration: | Tube to Port |
