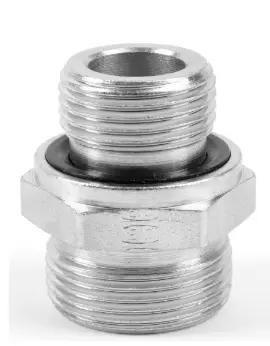

GE10LR3/8EDOMDCF
DESCRIPTION:
The main function of Ermeto DIN male stud high pressure hydraulic tube fittings is to connect different numbers of tubes and hoses. This broad range of fittings is available in steel and in stainless steel.
Technical Specifications
| Seal Material: | NBR |
| Connection 2 Size: | G 3/8 A |
| Body Material: | Steel |
| Product Series: | EO Light |
| Brand: | Ermeto |
| Shape: | Straight |
| Division: | High Pressure Connectors Europe Division |
| Connection 1 Type: | Male 24° Cone |
| Technology: | Fluid & Gas Handling |
| Connection 1 Size: | 10 mm (O.D.) |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Connection 2 Type: | Male BSPP |
| Optional Accessories: | n/a |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Hydraulics, Oilfield, Packaging |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Stud Fitting |
| Product Series: | EO Light |
| Configuration: | Tube to Port |
| Maximum Operating Pressure: | 420 bar |
| Shape: | Straight |
| Connection 1 Type: | Male, 24° Cone |
| Connection 1 Size: | 10 mm Tube O.D. |
| Connection 2 Type: | Male, BSPP (ISO 1179) |
| Connection 2 Size: | G 3/8 A inch Thread |
| Specifications Met: | ISO 1179 |
| For Fluid Type: | Hydraulic Fluids, Chemicals, Fuels, Gases, Steam |
| Accessories Included: | n/a |
| Body Material: | Steel |
| Seal Type: | ED Seal |
| Seal Material: | NBR |
| Maximum Ambient Temperature: | 120 °C, 248 °F |
| Minimum Ambient Temperature: | -50 °C, -58 °F |
| Maximum Fluid Temperature: | 120 °C, 248 °F |
| Minimum Fluid Temperature: | -50 °C, -58 °F |
