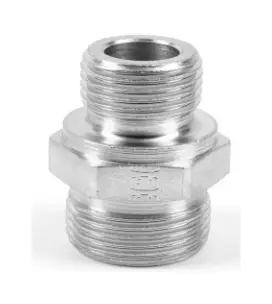

GE10LR71X
DESCRIPTION:
The main function of Ermeto DIN male stud high pressure hydraulic tube fittings is to connect different numbers of tubes and hoses. This broad range of fittings is available in steel and in stainless steel.
TECHNICAL DESCRIPTION:
| Connection 2 Size: | G 1/4 A |
| Seal Material: | Metal Sealing Edge |
| Body Material: | Stainless Steel |
| Brand: | Ermeto |
| Product Series: | EO Light |
| Shape: | Straight |
| Division: | High Pressure Connectors Europe Division |
| Connection 1 Type: | Male 24° Cone |
| Maximum Fluid Temperature: | 400 °C, 752 °F |
| Connection 1 Size: | 10 mm (O.D.) |
| Maximum Ambient Temperature: | 400 °C, 752 °F |
| Connection 2 Type: | Male BSPP |
| Maximum Operating Pressure: | 315 bar |
| Configuration: | Tube to Port |
