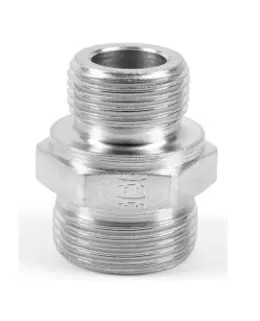

GE10LRCFX
DESCRIPTION:
The main function of Ermeto DIN male stud high pressure hydraulic tube fittings is to connect different numbers of tubes and hoses. This broad range of fittings is available in steel and in stainless steel.
TECHNICAL DESCRIPTION:
| Connection 2 Size: | G 1/4 A |
| Body Material: | Steel |
| Seal Material: | Metal Sealing Edge |
| Brand: | Ermeto |
| Maximum Operating Pressure: | 315 bar |
| Shape: | Straight |
| Division: | High Pressure Connectors Europe Division |
| Connection 1 Type: | Male 24° Cone |
| Technology: | Fluid & Gas Handling |
| Connection 1 Size: | 10 mm (O.D.) |
| Maximum Ambient Temperature: | 120 °C, 248 °F |
| Connection 2 Type: | Male BSPP |
| Maximum Fluid Temperature: | 120 °C, 248 °F |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Hydraulics, Oilfield, Packaging |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Stud Fitting |
| Product Series: | EO Light |
| Configuration: | Tube to Port |
