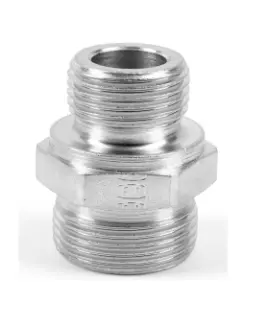

GE10SR1/4CF
DESCRIPTION:
EO-PSR fittings produce high pressure, leak-free tube connections and components in hydraulic systems. The main feature of EO-PSR (acc. DIN 3861, DIN 2353) is the controlled progressive bite into the tube, due to a unique geometry.
TECHNICAL DESCRIPTION:
| Connection 2 Size: | G 1/4 A |
| Body Material: | Steel |
| Maximum Operating Pressure: | 400 bar |
| Brand: | Ermeto |
| Product Series: | EO Heavy |
| Shape: | Straight |
| Maximum Ambient Temperature: | 120 °C, 248 °F |
| Maximum Fluid Temperature: | 120 °C, 248 °F |
| Connection 1 Type: | Male 24° Cone |
| Connection 1 Size: | 10 mm (O.D.) |
| Connection 2 Type: | Male BSPP |
| Optional Accessories: | Pre-assembled with Nut and EO-PSR Cutting Ring |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Stud Fitting |
| Product Series: | EO Heavy |
| Configuration: | Tube to Port |
