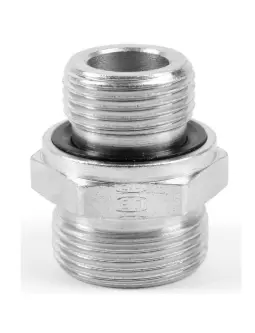

GE15LR3/8EDOMDCF
DESCRIPTION:
The main function of Ermeto DIN male stud high pressure hydraulic tube fittings is to connect different numbers of tubes and hoses. This broad range of fittings is available in steel and in stainless steel.
TECHNICAL DESCRIPTION:
| Connection 2 Size: | G 3/8 A |
| Body Material: | Steel |
| Maximum Ambient Temperature: | 120 °C, 248 °F |
| Maximum Fluid Temperature: | 120 °C, 248 °F |
| Brand: | Ermeto |
| Shape: | Straight |
| Division: | High Pressure Connectors Europe Division |
| Technology: | Fluid & Gas Handling |
| Connection 1 Type: | Male 24° Cone |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Connection 1 Size: | 15 mm (O.D.) |
| Connection 2 Type: | Male BSPP |
| Maximum Operating Pressure: | 400 bar |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Stud Fitting |
| Product Series: | EO Light |
| Configuration: | Tube to Port |
