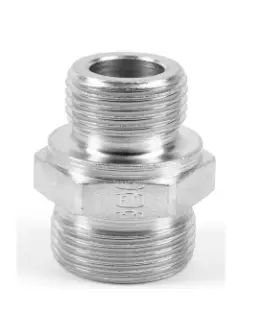

GE20SRCFX
DESCRIPTION:
The main function of Ermeto DIN male stud high pressure hydraulic tube fittings is to connect different numbers of tubes and hoses. This broad range of fittings is available in steel and in stainless steel.
TECHNICAL DESCRIPTION:
| Connection 2 Size: | G 3/4 A |
| Brand: | Ermeto |
| Maximum Operating Pressure | 400 bar |
| Maximum Ambient Temperature: | 120 °C, 248 °F |
| Shape: | Straight |
| Maximum Fluid Temperature: | 120 °C, 248 °F |
| Connection 1 Type: | Male 24° Cone |
| Connection 1 Size: | 20 mm (O.D.) |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Connection 2 Type: | Male BSPP |
| Optional Accessories: | n/a |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Hydraulics, Oilfield, Packaging |
| Product Type: | Hydraulic DIN Fittings |
| Product Style: | Stud Fitting |
| Product Series: | EO Heavy |
| Configuration: | Tube to Port |
