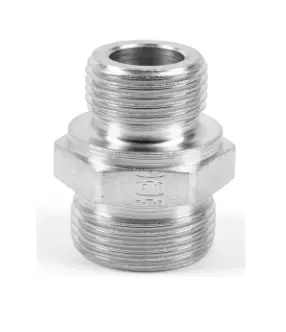

GE22LRCFX
DESCRIPTION:
The main function of Ermeto DIN male stud high pressure hydraulic tube fittings is to connect different numbers of tubes and hoses. This broad range of fittings is available in steel and in stainless steel.
TECHNICAL DESCRIPTION:
| Body Material: | Steel |
| Connection 2 Size: | G 3/4 A |
| Seal Material: | Metal Sealing Edge |
| Brand: | Ermeto |
| Maximum Ambient Temperature: | 120 °C, 248 °F |
| Shape: | Straight |
| Maximum Fluid Temperature: | 120 °C, 248 °F |
| Technology: | Fluid & Gas Handling |
| Connection 1 Type: | Male 24° Cone |
| Industry: | Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling, Transportation |
| Connection 1 Size: | 22 mm (O.D.) |
| Connection 2 Type: | Male BSPP |
| Maximum Operating Pressure: | 160 bar |
| Application: | Chemical Transfer, Fuel Transfer, Hydraulics, Mobile Hydraulics, Oilfield, Packaging |
| Configuration: | Tube to Port |
